VMS-1502 - RTD Meter

RTD Meter

About RTD Meter

When working with RTD temperature sensors, a precise sensor acquisition is an essential and challenging task. This is why we pay a big attention to the whole chain of the sensor sensing and processing and why we developed our product VMS-1502.



With VMS-1502 we have full control over the measuring chain, we are able to adapt to every single sensor specific properties and characteristics as they obviously differ regarding an installation setup, placing, and wiring. With the VMS-1502 you can choose between platinum PT100 and PT1000 RTD sensors acquiring on 6 individual input channels. Measured data can be read via RS-485 bus and Modbus-RTU protocol that is natively supported by VMS Controller. Each channel can be individualy configured to measure either PT100 or PT1000 from the Controller. The configuration is stored in the non-volatile memory of VMS-1502.

Parameters

Parameter Value
Mounting 35/7,5 DIN
Width 3 modules
Number of Inputs 6
Temperature measurement range -200 °C to 600 °C
Measurement accuracy PT100 +/- 0.5 °C (full range)
Measurement accuracy PT1000 +/- 0.25 °C (full range)

Photography

Software

Softwar tools are available on Github supporting:

  • Graphical visualization of all registers
  • Read and write register operations
  • Update firmware of the device

About RTD Meter

When working with RTD temperature sensors, a precise sensor acquisition is an essential and challenging task. This is why we pay a big attention to the whole chain of the sensor sensing and processing and why we developed our product VMS-1502.



With VMS-1502 we have full control over the measuring chain, we are able to adapt to every single sensor specific properties and characteristics as they obviously differ regarding an installation setup, placing, and wiring. With the VMS-1502 you can choose between platinum PT100 and PT1000 RTD sensors acquiring on 6 individual input channels. Measured data can be read via RS-485 bus and Modbus-RTU protocol that is natively supported by VMS Controller. Each channel can be individualy configured to measure either PT100 or PT1000 from the Controller. The configuration is stored in the non-volatile memory of VMS-1502.

Software

Softwar tools are available on Github supporting:

  • Graphical visualization of all registers
  • Read and write register operations
  • Update firmware of the device

Parameters

Parameter Value
Mounting 35/7,5 DIN
Width 3 modules
Number of Inputs 6
Temperature measurement range -200 °C to 600 °C
Measurement accuracy PT100 +/- 0.5 °C (full range)
Measurement accuracy PT1000 +/- 0.25 °C (full range)

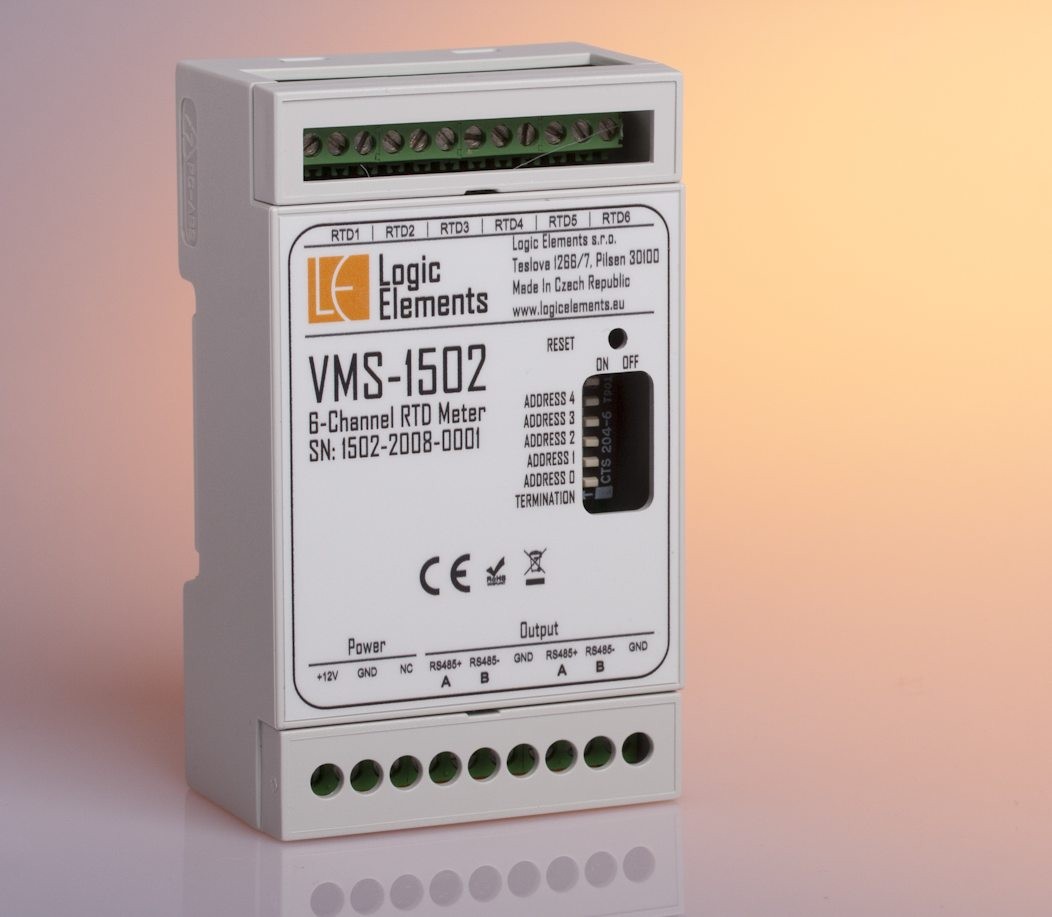

Photography
